Ecological Archives E095-204-A3
Masato Yamamichi, Takehito Yoshida, and Akira Sasaki. 2014. Timing and propagule size of invasion determine its success by a time-varying threshold of demographic regime shift. Ecology 95:2303–2315. http://dx.doi.org/10.1890/13-1527.1
Appendix C. Comparison of the scaled model and the full model.

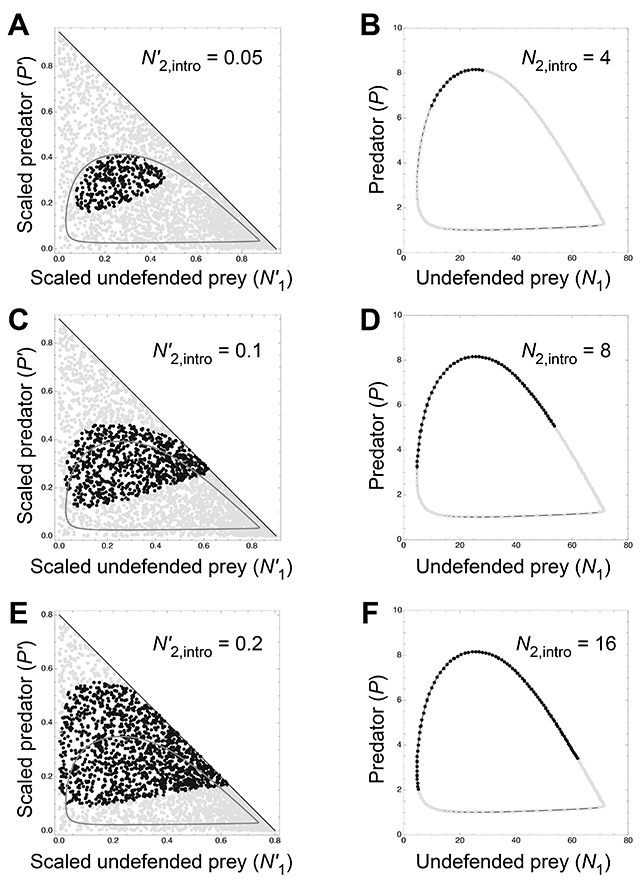

Fig. C1. Comparison of the effects of invasion timing in the scaled three-variables model with the quasi-equilibrium assumption (A, C, E) and those in the full four-variables model (B, D, F). Note that scaled defended prey N'2 = N2/(ε1RI) = N2/80 here.
