Ecological Archives A022-060-A5

Nicholas J. DeCesare, Mark Hebblewhite, Fiona Schmiegelow, David Hervieux, Gregory J. McDermid, Lalenia Neufeld, Mark Bradley, Jesse Whittington, Kirby G. Smith, Luigi E. Morgantini, Matthew Wheatley, and Marco Musiani. 2012. Transcending scale dependence in identifying habitat with resource selection functions. Ecological Applications 22:1068–1083.

Appendix E. Area-adjusted frequencies of validation locations within ordinal bins of SRSF predicted values per scale, population, and season.

Figures E1–E9 depict area-adjusted frequencies of internal validation used locations within each ordinal bin of scale-integrated SRSF predicted values, with error bars representing 1 standard deviation from among-individual means for nine populations for winter (blue lines) and summer (red lines) seasonal models depicting woodland caribou resource selection at first-order (S₁), second-order (S₂), and third-order (S₃) scales of selection in west-central Alberta and eastern British Columbia, 1998–2009.

Fig. E1. A la Pêche population.

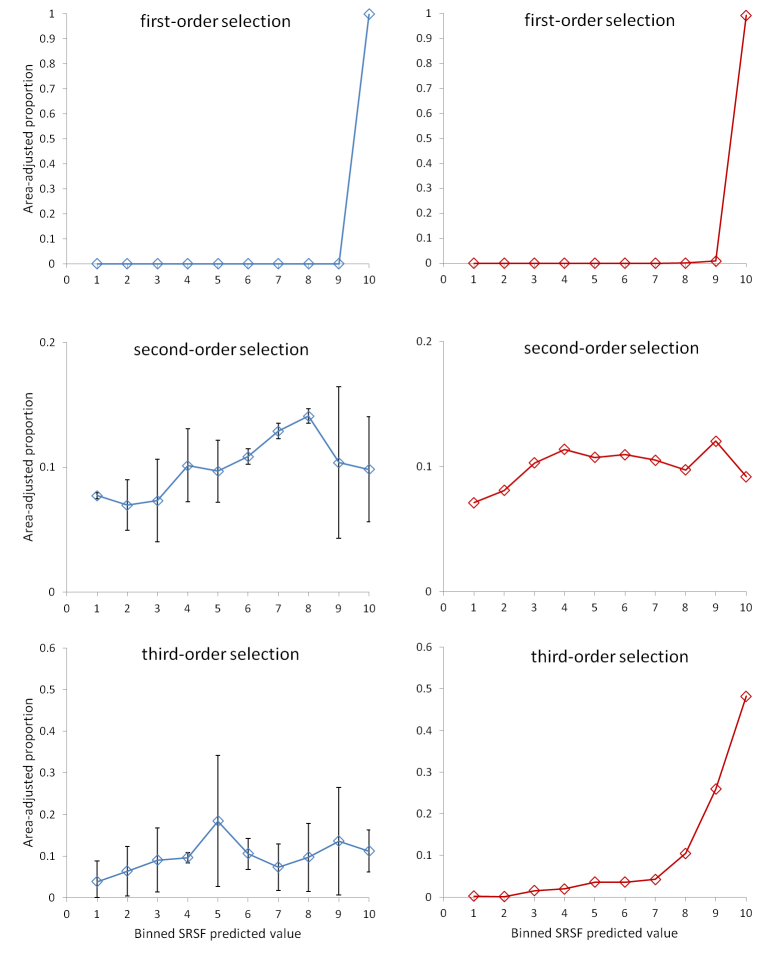

Fig. E2. Banff population.

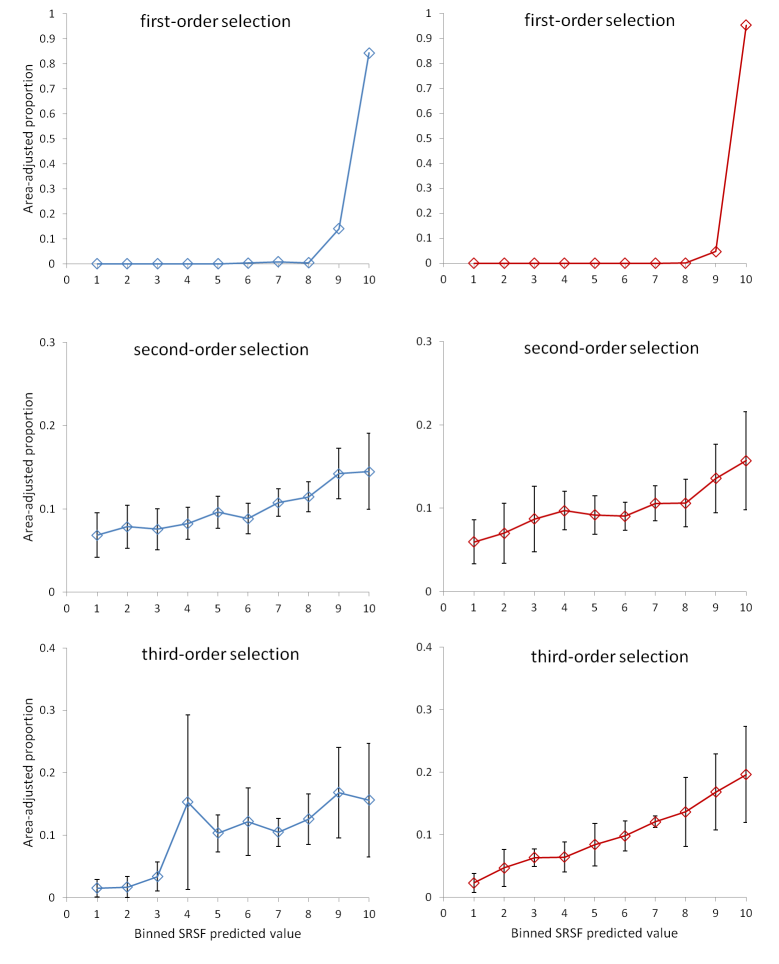

Fig. E3. Brazeau population.

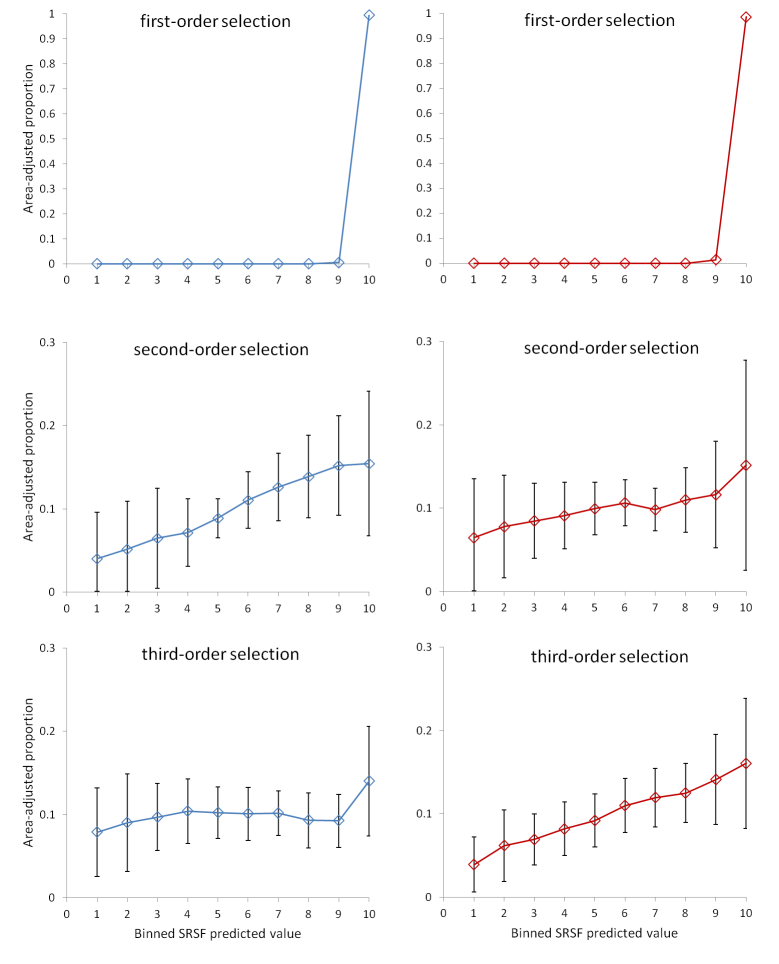

Fig. E4. Little Smoky population.

Fig. E5. Maligne population.

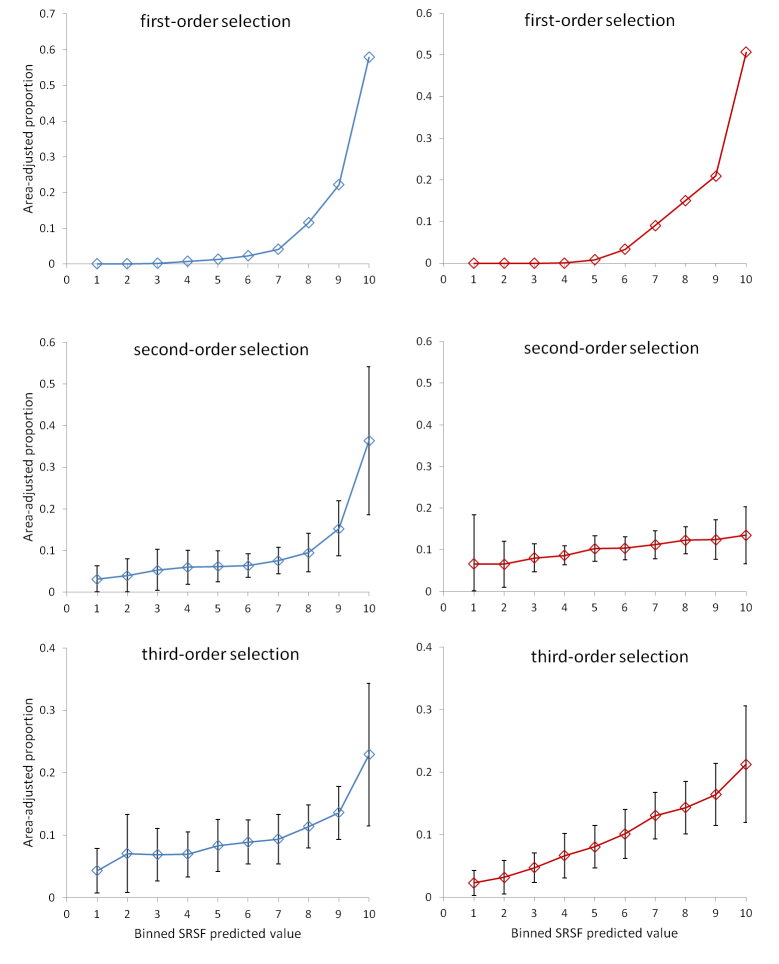

Fig. E6. Narraway population.

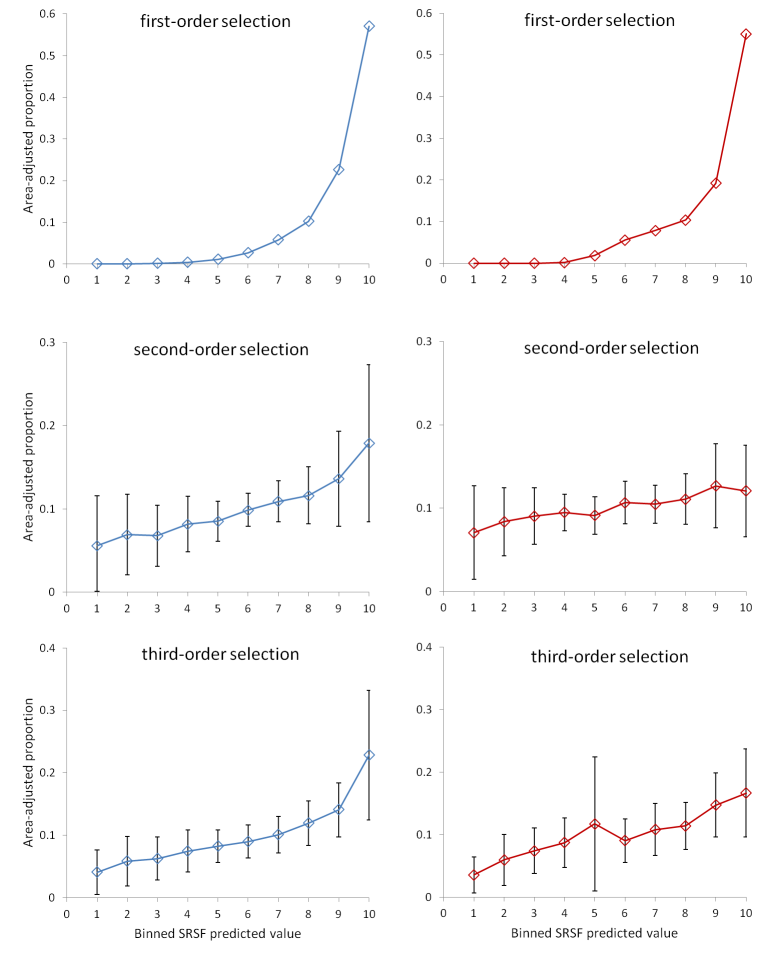

Fig. E7. Redrock-Prairie Creek population.

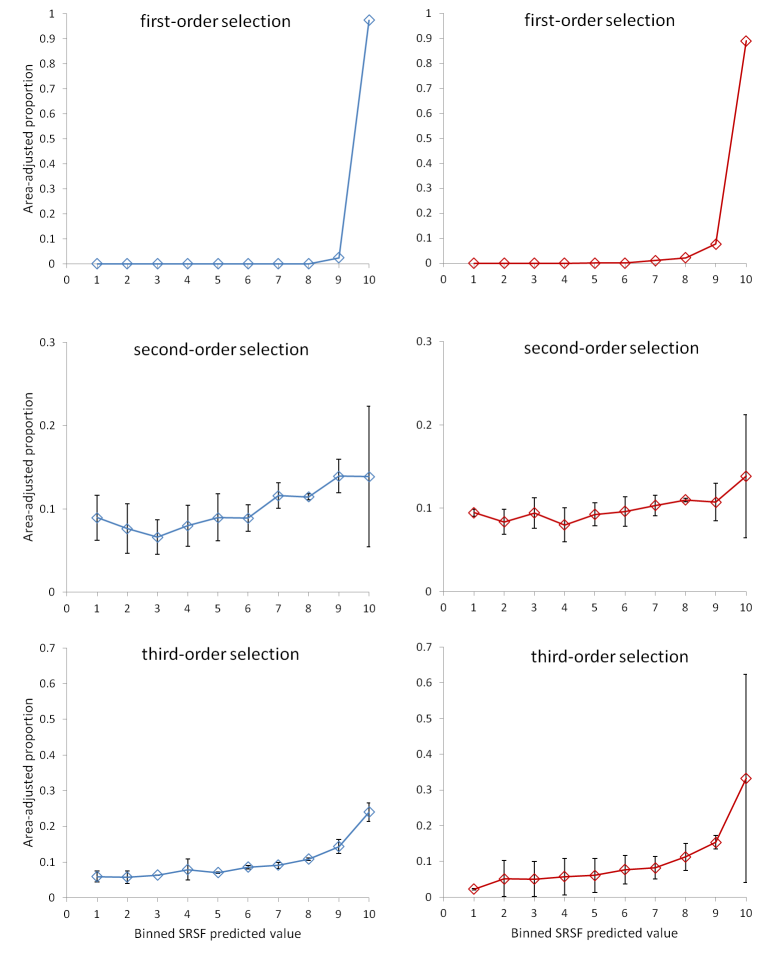

Fig. E8. Redwillow population.

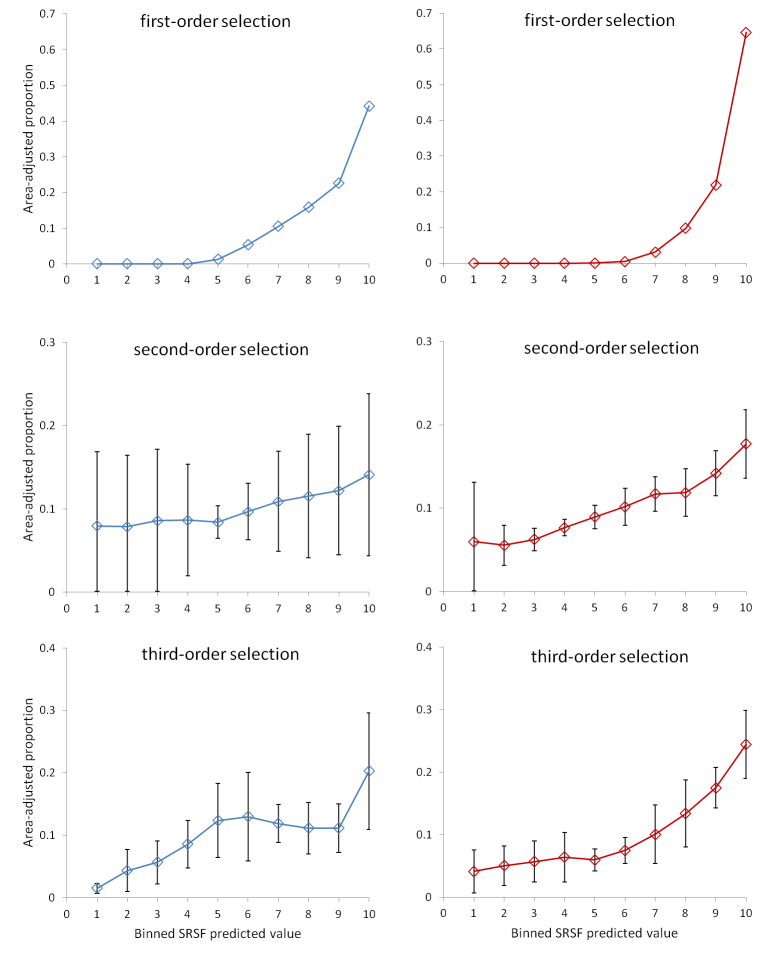

Fig. E9. Tonquin population.
